What Makes a PoE Network Switch Stand Out?

PoE Network Switch

In today’s increasingly connected world, the need for reliable and efficient networks is paramount. Power over Ethernet (PoE) network switches have become a game-changer, simplifying network infrastructure by delivering both data and power through a single Ethernet cable. This eliminates the need for separate power supplies for PoE-powered devices, streamlining installation and maintenance.

But with a growing number of PoE switch options available, what features truly make a switch stand out? Let’s delve deeper into the key characteristics that differentiate exceptional PoE network switches from the rest.

Key Features of a Stand-Out PoE Network Switch

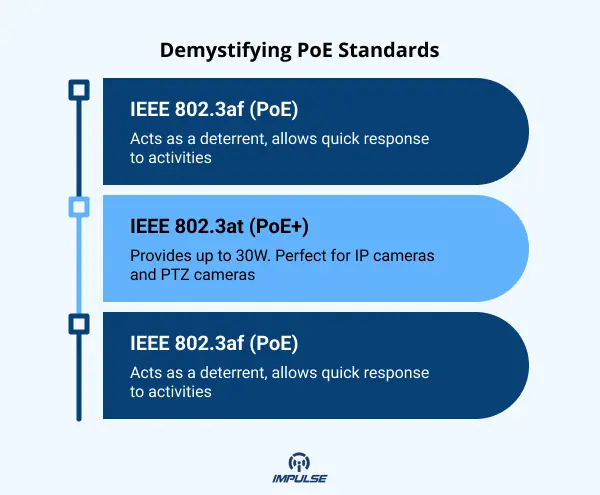

1. Power Delivery Capabilities

When it comes to networking, a Power over Ethernet (PoE) switch can be a game-changer. These devices are critical for powering devices over the network, but not all PoE switches are created equal. Recognizing this, it becomes crucial to understand the different PoE standards and how they fit into your network’s requirements. Here’s a detailed breakdown of the most common ones:

  • IEEE 802.3af (PoE): This standard is the base level of power delivery. It delivers up to 15.4 watts (W) of power, which may seem limited but is more than enough for low-power devices. Devices that might fall into this category include Voice over IP (VoIP) phones and wireless access points, which typically have modest power needs.
  • IEEE 802.3at (PoE+): This standard is an upgrade from the 802.3af, providing up to 30W of power. This higher power capacity makes it ideal for powering devices that require more energy, such as IP cameras, Pan-Tilt-Zoom (PTZ) cameras, and other more demanding devices.
  • UPOE (Ultra PoE): This is a proprietary standard that goes beyond the traditional boundaries of PoE. Capable of delivering up to 60W or even higher, UPOE is used for high-power devices that the other standards can’t handle. Examples of such devices include pan-tilt-zoom (PTZ) cameras with heaters and powerful LED illuminators.

By understanding these key features, you can make a well-informed decision when selecting a PoE switch, ensuring it aligns with your network’s power delivery needs.

wide range of PoE network switches

Selecting the right switch is an important task that extends far beyond merely adhering to standards. It’s about finding a switch that offers a host of beneficial features. One such feature to consider is Power over Ethernet (PoE) budgeting. This feature provides the capability to allocate a specific power budget for each PoE port. By doing so, it prevents any potential overload situations while simultaneously ensuring that all connected devices receive the proper power they require for optimal performance.

Furthermore, another advantageous feature to look for is PoE classification. This feature is extremely useful as it automatically detects the individual power requirements of each connected device. Once these requirements are identified, the switch then delivers the exact amount of power needed. This prevents situations where devices are either under or over-powered, ensuring that each device operates at its most efficient power level.

PoE Standards

2. Port Configuration and Flexibility

When configuring your network, the number of Power over Ethernet (PoE) ports required is directly related to the size of your network and the quantity of PoE devices you intend to connect. Ensuring you have an adequate number of ports is absolutely essential, as it can help prevent potential bottlenecks and promote future scalability.

In addition to the quantity of ports, the quality of these ports is also an important consideration. For instance, Gigabit PoE ports provide the advantage of high-speed data transfer capabilities, with rates up to 1 Gbps. This is particularly beneficial for bandwidth-intensive applications, such as IP video surveillance, where high data transfer rates can significantly improve performance.

For those seeking maximum flexibility, it’s advisable to select switches that offer a combination of both PoE and non-PoE ports. This diverse configuration allows for the connection of a wider array of devices, including older, legacy equipment that may not require PoE, thereby enhancing the overall versatility of your network.

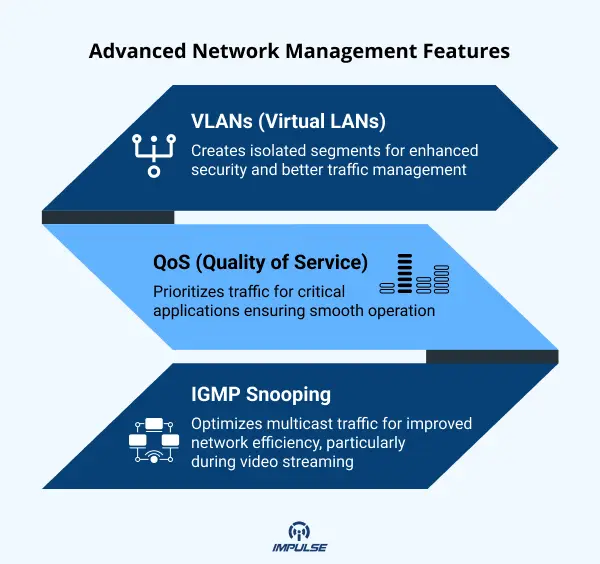

3. Advanced Network Management Features

Having the capability to optimize your network performance is a fundamental aspect of ensuring a seamless and efficient user experience. This can be achieved by looking for certain advanced features, including:

  • VLANs (Virtual LANs): These allow you to logically segment your network, which results in the creation of isolated broadcast domains. This not only enhances security but also significantly improves traffic management, promoting a more efficient network.
  • QoS (Quality of Service): This feature enables you to prioritize network traffic for critical applications, such as Voice over IP (VoIP) and video conferencing. This ensures that these important operations continue to run smoothly, even during periods of peak network usage, thereby maintaining consistent performance.
  • IGMP Snooping: This is a feature that optimizes multicast traffic, which is commonly utilized for IP video streaming. By improving the efficiency of this type of network traffic, it can significantly enhance the overall performance and reliability of your network.

Also Read: POE vs. Non-POE Switches: What’s the Difference?

Network Management Features

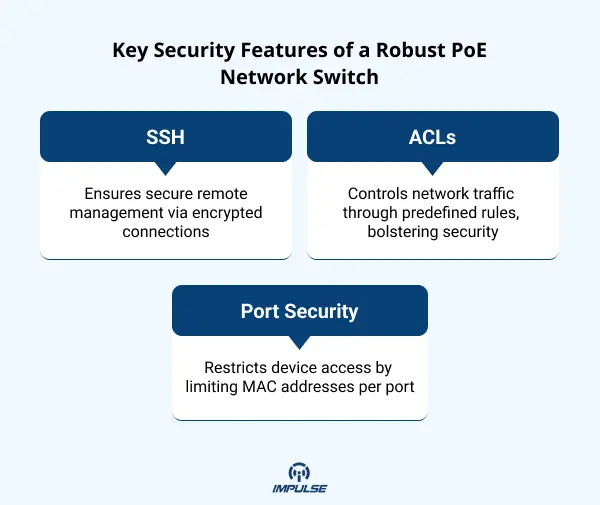

4. Security Features

Network security is of utmost importance in today’s interconnected world. A robust Power over Ethernet (PoE) switch should, therefore, offer several integral security features that protect your network from unauthorized access and potential breaches.

  • Port security: This feature restricts unauthorized access by limiting the number of MAC addresses that are allowed to connect to a specific port. This simple yet effective method ensures that only approved devices can gain access, thereby enhancing overall network security.
  • Access Control Lists (ACLs): These are essentially filters that control incoming and outgoing network traffic based on predefined rules. By precisely defining who or what can interact with your network, ACLs significantly enhance your network’s security profile.
  • Secure Shell (SSH): SSH protocol provides a secure encrypted connection for remote management. By ensuring that your network configuration is only accessible over a secure connection, SSH effectively safeguards your network from unauthorized access, thereby adding an additional layer of security.
Robust PoE Network Switch

5. Durability and Reliability

When it comes to Power over Ethernet switches, the quality of the components used can significantly influence their durability and reliability, especially in harsh environments.

High-quality components are, therefore, essential for ensuring reliable PoE switch operation under all conditions. When choosing a PoE switch, it’s advisable to look for switches that are built using robust and durable materials.

Moreover, consider features like fanless cooling. Not only does this feature reduce the operational noise of the switch, but it also extends the lifespan of the switch. This is because fanless cooling minimizes dust accumulation, a common cause of hardware failure in traditional, fan-cooled devices.

Additional Factors to Consider for Selecting a PoE Network Switch

1. Brand Reputation and Warranty

When it comes to selecting a PoE switch, the reliability of the brand and its proven track record in the manufacturing of these switches should be a key factor. One brand that stands out in this regard is Impulse CCTV, which has garnered a well-deserved reputation for excellence. Their high-quality PoE switches are bolstered by comprehensive warranties, providing customers with an invaluable peace of mind and assurance in their investment.

2. Scalability and Future Needs

In considering the longevity of your network, it’s important to take into account your future expansion plans. Therefore, it’s wise to choose switches that come equipped with features like stacking capabilities. These functionalities allow for the easy addition of further switches as your network continues to grow and evolve. By doing so, your initial investment is future-proofed, avoiding the potentially costly need to replace your existing switch further down the line.

3. Technical Support and Customer Service

Another critical factor to consider is the level of technical support and customer service offered by the brand. It’s essential to choose a brand that is renowned for its excellent technical support and customer service. Having access to good support can assist you in troubleshooting any issues that may arise, ensuring your network maintains its smooth operation and efficiency.

4. Energy Efficiency

In today’s environmentally-conscious era, energy efficiency has become a significant factor in any purchasing decision. This holds true when choosing PoE networking switches. Look for switches with energy-efficient features such as EEE (Energy Efficient Ethernet). These switches have the potential to significantly reduce power consumption, leading to considerable cost savings in the long run.

5. Compatibility

Last but certainly not least, ensure that the switch you choose is compatible with your existing network devices and infrastructure. This includes verifying the PoE standards supported by the switch and ensuring they align with those of your devices. Taking this step will ensure seamless integration and operation within your existing network.


By giving priority to the key features we’ve discussed above, you can make an informed choice and select a PoE network switch that distinguishes itself from its competitors. A well-equipped PoE switch does more than just ensure a reliable power supply and data delivery for your networked devices. It also optimizes the overall performance of your network, enhances security measures in place, and provides scalability to accommodate future growth and expansion.

At Impulse CCTV, our commitment is to provide our customers with the highest quality PoE network switch solutions available on the market. We offer a comprehensive range of switches, each designed to cater to a wide array of power requirements, port configurations, and network management needs. Our goal is to assist you in finding the perfect PoE switch that is tailor-made for your specific application and will seamlessly integrate into your existing network infrastructure, ensuring it meets not only your current needs but also those that may arise in the future.

Ready to maximize your network with a top-notch PoE switch?

Don’t let your network lag behind in this fast-paced, connected world. Contact us today to discuss your requirements. Let us assist you in making an informed decision for your networking needs.
