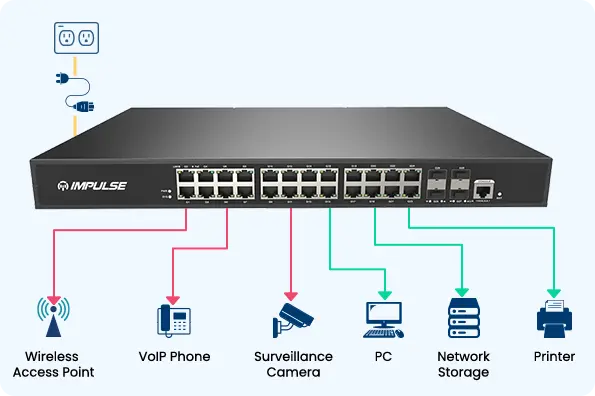

Power Over Ethernet: The Switch That Powers More Than Just Your Network

For security professionals and business owners alike, installing a CCTV system can be a daunting task. Traditional setups often involve a tangled mess of wires, with separate power cables needing to be run for each camera. This not only makes installation complex and time-consuming but also limits camera placement options due to reliance on nearby power outlets.

Thankfully, Power over Ethernet (PoE) technology offers a revolutionary solution. PoE eliminates the need for separate power cables by transmitting both data and electrical power over a single Ethernet cable. This blog dives deep into the world of PoE, exploring its benefits for CCTV systems, the different types of PoE solutions available, and how it enhances security features.

Revolutionizing CCTV Installations with PoE

PoE technology simplifies CCTV installations by leveraging existing network infrastructure. A PoE-enabled network switch acts as the “Power Sourcing Equipment” (PSE), injecting power into the Ethernet cable. The camera, acting as the “Powered Device” (PD), receives the necessary power to operate without requiring an additional power source.

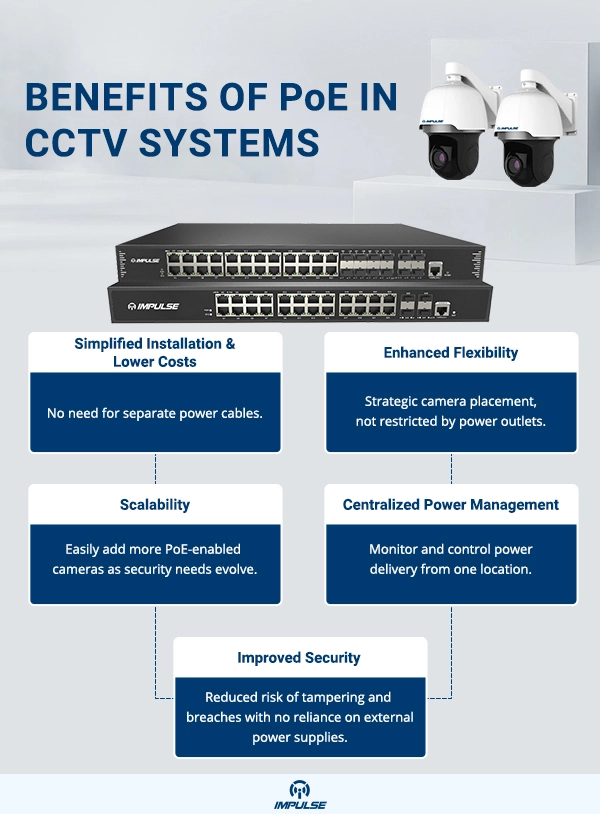

This innovative approach offers a multitude of benefits for CCTV systems:

• Simplified Installation and Reduced Costs: By eliminating the necessity for separate power cables, the installation process becomes significantly less complex, reducing the amount of time required and subsequently lowering the labor costs associated with installation.
• Enhanced Flexibility: The use of Power over Ethernet (PoE) introduces a new level of strategy when it comes to camera placement. Without the restriction of needing to be near a power outlet, cameras can be placed in the most optimal locations to provide superior surveillance coverage.
• Scalability for Future Growth: PoE systems are designed with future growth in mind. As your security needs evolve and change over time, additional PoE-enabled cameras can be easily integrated into the system without the need for any significant upgrades to your power infrastructure.
• Centralized Power Management: One of the main benefits of PoE is that power management becomes far more streamlined and efficient. The power delivery to individual cameras can be monitored and controlled from a central location, which significantly simplifies both the maintenance and troubleshooting process.
• Improved Security: PoE also increases the security of the system by eliminating the reliance on external power supplies. This reduction in potential points of vulnerability decreases the risk of tampering and potential security breaches, thus ensuring a more secure surveillance system.

Understanding PoE Technology: A Breakdown for Security Professionals

The world of Power over Ethernet (PoE) technology is both fascinating and complex. While the central idea of PoE, which is the delivery of electric power alongside data on Ethernet cables, is fairly simple, it is of utmost importance to grasp the technical nuances for selecting the most fitting solution. This comprehensive section aims to delve into the intricate details and technical aspects of PoE, presenting them in a manner that is both clear and concise, to provide a solid foundation for understanding and utilizing this transformative technology.

As PoE technology has evolved, so too have the standards that underpin its functionality. Currently, there are three primary PoE standards that are widely recognized within the industry switches: 802.3af (PoE), 802.3at (PoE+), and 802.3bt (PoE++). Each standard, while fundamentally rooted in the same concept, differs significantly in their maximum power delivery capabilities; thus, they cater to different types of devices and usage scenarios:

• IEEE 802.3af (PoE): The original standard, 802.3af provides up to 15.4 watts of DC power. It’s primarily suitable for basic IP cameras and other low-power devices, making it a staple in many entry-level setups.
• IEEE 802.3at (PoE+): A step up from its predecessor, 802.3at, also known as PoE+, delivers up to 30 watts of power. This makes it ideal for high-resolution cameras, advanced IP devices, and other equipment that necessitate a higher power supply.
• IEEE 802.3bt (PoE++): The most recent and advanced standard, 802.3bt, or PoE++, offers up to a whopping 90 watts of power. This substantial power output caters to high-powered devices such as PTZ (Pan-Tilt-Zoom) cameras, video intercoms, and other power-hungry devices. This standard pushes the boundaries of what PoE technology can achieve, paving the way for future innovations.

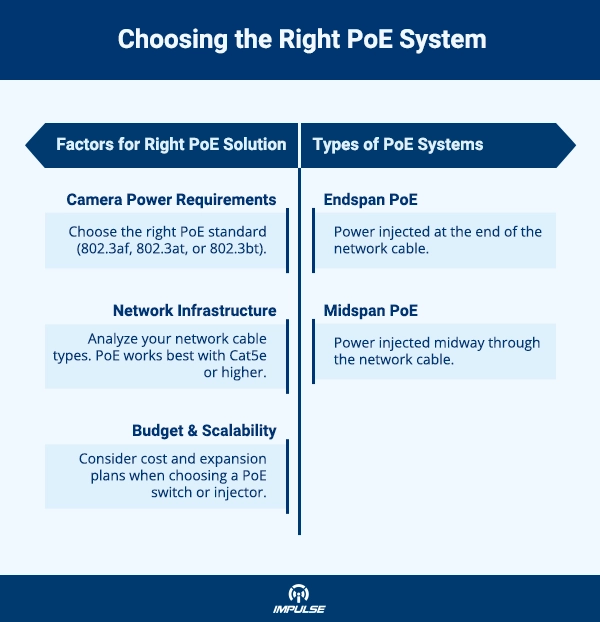

Choosing the Right PoE System

There are two primary types of PoE (Power over Ethernet) systems you’ll encounter:

• Endspan PoE: In an Endspan PoE configuration, power is introduced at the endpoint of the network cable, which is typically in close proximity to the camera. This is often accomplished with the aid of a PoE switch that has built-in PoE capabilities. This setup is convenient because it centralizes power distribution and minimizes the need for additional wiring.
• Midspan PoE: In a Midspan PoE setup, power is injected into the network cable at a point that’s midway between the data source and the camera. This is usually done using a dedicated PoE injector. This option can be particularly useful in scenarios where your existing network switches do not have built-in PoE capabilities.

When deciding on the most suitable PoE solution for your needs, there are several key factors that should be taken into account:

• Power Requirements of Your Cameras: It’s essential to ensure that the PoE standard you select (be it 802.3af, 802.3at, or 802.3bt) can provide the level of power that your cameras require. You should check the power specifications of your cameras and compare it with the power output of the PoE standard.
• Existing Network Infrastructure: You should conduct a thorough analysis of your existing network infrastructure, particularly the types of network cables you have in place. PoE typically functions optimally with Cat5e cables or cables of a higher category.
• Budget and Scalability Needs: Lastly, your budget and future expansion plans should play a role in your decision. Consider how much you are willing to spend and the number of PoE ports you might need in the future when choosing between a PoE switch or injector. This is important because you want a solution that not only caters to your current needs but is also capable of serving your future requirements.

Also Read: POE vs. Non-POE Switches: What’s the Difference?

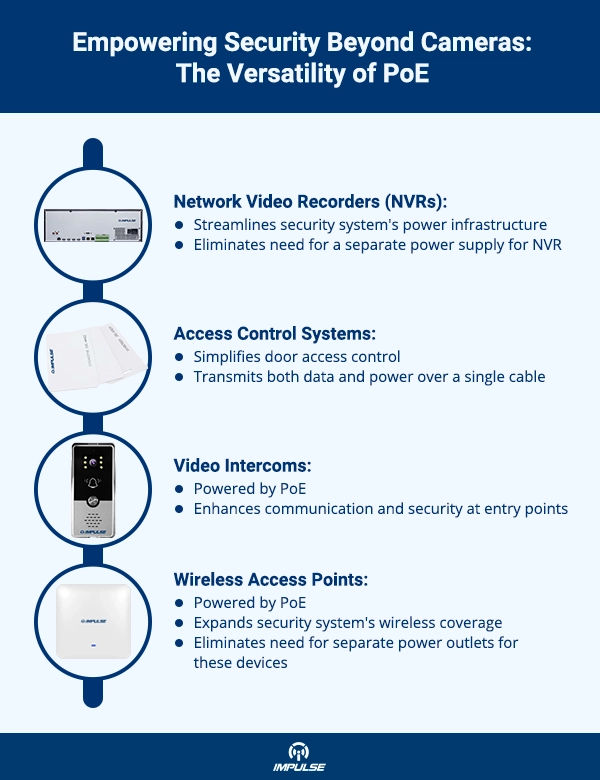

Empowering Security Beyond Cameras: The Versatility of PoE

Power over Ethernet (PoE) technology provides benefits that reach beyond just powering CCTV cameras. This versatile technology can power a plethora of components that form an integral part of a comprehensive security system. These components include:

• Network Video Recorders (NVRs) : With PoE, there’s no need for a separate power supply for your NVR. This not only simplifies your security system’s power infrastructure but also enhances its efficiency. Explore Impulse CCTV’s selection of PoE-compatible NVRs ([link to NVRs on Impulse CCTV website]) designed for seamless integration into your existing system.
• Access Control Systems: Access control systems powered by PoE simplify the management of door access control by transmitting both data and power over a single cable. Impulse CCTV offers reliable and efficient PoE-enabled access control systems ([link to access control systems on Impulse CCTV website]) that provide secure access control with reduced cable clutter.
• Video Intercoms : Video intercoms powered by PoE can significantly enhance communication and security at entry points. Impulse CCTV offers a range of high-quality PoE-powered video intercoms ([link to video intercoms on Impulse CCTV website]) that ensure clear communication and robust security.
• Wireless Access Points : By deploying PoE-powered wireless access points, you can expand your security system’s wireless coverage. This eliminates the need for separate power outlets for these devices, reducing the complexity of the setup. Impulse CCTV’s range of PoE-powered wireless access points ([link to wireless access points on Impulse CCTV website]) provide wide coverage and reliable connectivity to enhance your security system.

These PoE-enabled products from Impulse CCTV, when combined with their impressive range of PoE switches and injectors, offer a complete solution for a PoE-powered comprehensive security system. This versatility makes PoE a valuable asset for creating a robust and integrated security solution.

Also Read: The Future of PoE Networking: What’s Next for this Growing Market?

Enhanced Security with Power Over Ethernet (PoE)

In addition to simplifying installation and providing unprecedented flexibility, Power over Ethernet (PoE) plays a significant role in creating a more secure environment, which is crucial in today’s digital age. Here are some ways in which PoE contributes to enhanced security:

• Minimized Risk of Tampering: One of the foremost advantages of PoE is that it eliminates the need for external power supplies. This means there are no exposed power cords that could potentially be tampered with, thus significantly reducing the risk of unauthorized interference. It’s a simple change that enhances the overall security of your system.
• Remote Power Cycling: Another unique feature of PoE is its capability to enable remote power cycling of devices directly from the PoE switch. This means that in the event of an issue with cameras or other connected devices, they can be rebooted remotely. This not only facilitates easier troubleshooting but also prevents the need for physically visiting the location, saving time and resources.
• Centralized Power Management: Finally, PoE facilitates seamless integration with centralized power management systems. This provides the ability to monitor power consumption for individual devices in real-time. Such a feature is crucial in proactive maintenance, as it allows for early detection of any potential issues, ensuring optimal system performance at all times, and prolonging the lifespan of your devices.

Impulse CCTV: Your Trusted PoE Solution Provider

At Impulse CCTV, we understand the crucial role that reliable security systems play in safeguarding your business or property. Our team of experts possesses extensive knowledge of PoE technology and is dedicated to providing you with the best PoE solutions tailored to your specific needs.

Product Range: We offer a comprehensive range of PoE-related products, including:

• PoE Switches: Our selection includes a variety of PoE switches with different port configurations and power delivery capabilities to suit your network infrastructure.
• PoE Splitters and Injectors: For situations where your existing network switch lacks PoE functionality, we offer high-quality PoE splitters and injectors to seamlessly integrate PoE into your system.
• PoE-Enabled CCTV Cameras: We provide a broad range of PoE-compatible CCTV cameras, such as dome cameras, bullet cameras, PTZ cameras, and fisheye cameras, to meet your diverse security requirements. These cameras come with features like high-definition resolution, low-light visibility, and weatherproof casing for exceptional performance in various conditions.

Conclusion

Power over Ethernet (PoE) technology has completely transformed the landscape for designing and installing closed-circuit television (CCTV) systems. The advent of PoE has ushered in an era of simplicity and convenience, offering streamlined installation processes that eliminate the complexities typically associated with traditional setups. Furthermore, this technology provides an elevated level of flexibility, allowing for modifications and adjustments to be made with ease. The enhanced scalability that PoE technology brings to the table ensures that your CCTV system can grow and adapt in tandem with your security needs. Centralized power management is another significant advantage provided by PoE, offering a centralized solution to monitor and control power supply, further contributing to the system’s reliability. In addition to these notable benefits, PoE also plays a pivotal role in creating a more secure environment. By reducing the risks associated with tampering and providing the ability to manage power remotely, it significantly boosts the overall security of the system. Therefore, PoE empowers you to establish a robust, reliable, and secure surveillance solution.
