As we embrace the new possibilities that 2024 brings, outdoor security has never been more crucial. At Impulse CCTV, we understand that selecting the right outdoor CCTV video surveillance system is a significant decision that can greatly enhance the safety and security of your assets and premises.

Here’s an in-depth guide to navigating the latest in outdoor CCTV technology, featuring some of our top products that have been trusted by businesses and homeowners alike.

Understanding Outdoor CCTV Video Surveillance Systems

Outdoor CCTV systems are designed to withstand the elements, providing reliable surveillance regardless of weather conditions. When considering an outdoor system, it’s essential to look for features like weather resistance, high-resolution imaging, night vision, and remote accessibility.

Weather Resistance: Our outdoor cameras, such as the Impulse Vandal Proof Bullet-Proof Weather-Resistant Camera, come with IP67 ratings, ensuring they are waterproof and dustproof. This means they can function optimally in various weather conditions, from the scorching heat of summer to the freezing cold of winter.

When it comes to outdoor surveillance, 4K vandal-proof bullet cameras offer the highest level of performance and durability. Here are some reasons why they are the most suitable choice:

1. High-Resolution Imaging

4K cameras provide superior image quality compared to lower resolution options. With a 4K resolution, these cameras capture more details, allowing for better identification and recognition of objects, people, and events. This is especially crucial in outdoor surveillance scenarios where clear footage is essential for investigation and evidence purposes.

2. Vandal-Proof Design

Outdoor environments can be harsh and unpredictable, making it necessary to choose cameras that can withstand vandalism attempts and physical damage. Vandal-proof bullet cameras are built with robust materials and protective features such as impact-resistant casing and tamper-proof screws. This ensures that the cameras remain intact and functional, even in challenging conditions or potential tampering situations.

3. Weather Resistance

Outdoor surveillance cameras need to withstand various weather conditions, including extreme heat, cold, rain, and dust. 4K vandal-proof bullet cameras are designed to be weather-resistant, often meeting IP67 or higher ratings. This means they are sealed against water and dust, allowing them to operate optimally in any climate. They can endure temperature fluctuations, ensuring reliable performance throughout the year.

4. Wide-Angle Coverage

Bullet cameras typically have a fixed lens with a wide-angle field of view. This allows them to capture a broader area, making them suitable for monitoring outdoor spaces such as parking lots, building entrances, and large outdoor areas. The wide coverage reduces the number of cameras needed for comprehensive surveillance, making the system more cost-effective.

5. Night Vision Capabilities

Outdoor surveillance often requires monitoring during low-light or nighttime conditions. 4K vandal-proof bullet cameras are equipped with advanced infrared (IR) technology, enabling them to capture clear video footage even in complete darkness. This ensures that crucial surveillance continues around the clock, providing enhanced security and peace of mind.

6. Easy Installation and Adjustment

Bullet cameras are designed for easy installation and adjustment. They typically come with a mounting bracket that allows flexible positioning and angle adjustment. This versatility ensures optimal placement for capturing the desired field of view and minimizing blind spots.

7. Integration and Compatibility

4K vandal-proof bullet cameras are designed to integrate seamlessly with other security systems and technologies. They can be connected to network video recorders (NVRs), video management software (VMS), and other surveillance equipment, allowing for centralized control and management. This compatibility enhances the overall effectiveness and functionality of the outdoor surveillance system.

8. Remote Accessibility

In today’s connected world, remote monitoring is non-negotiable. Our Impulse Mobile App for Cameras enable you to access live feeds from your mobile device or computer, no matter where you are, ensuring peace of mind around the clock.

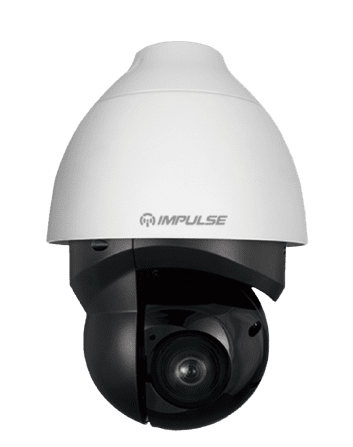

PTZ cameras

Outdoor CCTV systems are typically installed with PTZ (Pan-Tilt-Zoom) cameras. PTZ cameras offer the flexibility to pan, tilt, and zoom, allowing for a wide range of coverage and enhanced surveillance capabilities. With PTZ cameras, security personnel can remotely control the camera’s movement and focus on specific areas of interest in real-time, providing comprehensive monitoring and the ability to track suspicious activities effectively. This feature is especially beneficial in outdoor environments where a fixed camera may not provide sufficient coverage or where the need for real-time monitoring and response is critical.

Key Features of Modern Outdoor CCTV Systems

Modern outdoor CCTV systems are no longer just about recording footage. They incorporate advanced features such as motion detection, facial recognition, and integration with other smart systems.

Motion Detection: Our systems come with sophisticated motion sensors that alert you to any activity within their field of view, allowing for immediate action or review. The Impulse Motion Track Camera can send real-time notifications directly to your smartphone.

Facial Recognition: The ability to identify individuals can be critical in security scenarios. With the Impulse facial recognition software, you can maintain a database of known individuals and receive alerts if unknown faces are detected on your property.

Integration: Our CCTV systems can seamlessly integrate with your existing smart home or business systems, providing an interconnected security solution.

Secure Your Perimeter with Precision
Speak to an Impulse Advisor Now.

Your peace of mind is just a conversation away. Start securing your future with Impulse CCTV.

Secure Your Perimeter with Precision

Speak to an Impulse Advisor Now.

Your peace of mind is just a conversation away. Start securing your future with Impulse CCTV.

Importance of Armored Optical Fiber and Armored Cat 6 Cabling

When it comes to creating a robust and reliable outdoor CCTV network, the choice of cabling is paramount. Armored optical fiber and Armored Cat 6 cabling are the backbones of any outdoor surveillance system, providing the essential link between cameras, storage, and monitoring systems. These cables are designed to resist the harshest environmental conditions, from extreme temperature fluctuations to potential rodent damage and interference.

1. Proper Laying and Termination

The laying of armored cables requires careful planning to avoid tight bends and physical stresses that could damage the fibers within. The termination points, where the cable connects to devices or other cables, must be executed with precision, ensuring that the armored casing is not compromised and that the connection remains secure against environmental factors.

2. Insulation and Protection

The armour provides an additional layer of protection against electromagnetic interference, which can be a significant concern in industrial environments. It also protects against moisture and chemical vapours, which can corrode or damage standard cables.

Cabling Redundancy

In outdoor CCTV systems, a redundant optical fiber cabling network (for backbone connectivity) is crucial in ensuring continuous surveillance operations and minimizing downtime in the event of cuts or failures.

A redundant optical fiber cabling network consists of multiple fiber optic cables running parallel to each other, providing alternative pathways for data transmission. This redundancy is essential because it allows data to be rerouted automatically in case of a cable cut or failure. By having multiple fiber optic cables, the system can ensure that surveillance footage and data remain uninterrupted, even if one or more cables are damaged.

When a cut or failure occurs in one cable, the redundant network automatically switches to the alternate pathways, ensuring a seamless and uninterrupted data flow. This redundancy is especially critical for outdoor CCTV systems where reliable and continuous surveillance is paramount.

By implementing a redundant optical fiber cabling network, the system can effectively mitigate the impact of cable cuts or failures. This redundancy minimizes downtime, ensuring surveillance operations remain active and functional, even in challenging situations. It allows security personnel to maintain constant vigilance and respond promptly to any security incidents, enhancing the overall effectiveness and reliability of the outdoor CCTV system.

In summary, a redundant optical fiber cabling network is of utmost importance in outdoor CCTV systems to minimize downtime and ensure continuous surveillance, even in the face of cable cuts or failures. By providing alternative pathways for data transmission, this redundancy guarantees uninterrupted surveillance and enhances the overall reliability and resilience of the system.

Ruggedized Industrial Networking Switches

The core requirement for an outdoor CCTV system is ruggedized industrial networking switches. These switches are engineered to withstand outdoor deployment, where they may be exposed to dust, water, and varying temperatures.

Housing these switches in proper outdoor field racks ensures their longevity and reliability. The racks must have adequate ventilation and weatherproofing, allowing the switches to operate optimally.

Configuring Switches for User Access

To provide access to registered users, the switches in your outdoor CCTV system can be configured to allow native access or through a VPN (Virtual Private Network).

2. Native Access

By configuring the switches for native access, registered users can connect directly to the network through secure authentication methods. This allows them to access the surveillance system remotely using authorized devices. Native access provides a convenient and straightforward way for registered users to monitor and manage the CCTV system without the need for additional software or VPN connections.

3. VPN Access

Alternatively, you can configure the switches to provide access through a VPN. A VPN creates a secure and encrypted connection between the user’s device and the CCTV network. This ensures that the communication between the user and the surveillance system remains private and protected from unauthorized access. VPN access is particularly useful when users need to access the CCTV system from external networks or when an additional layer of security is required.

By configuring the switches to provide access to registered users either natively or via a VPN, you can ensure that authorized individuals have the ability to monitor and manage the outdoor CCTV system securely and efficiently.

For detailed instructions on how to configure switches for user access, please refer to the documentation provided part of your product kit or consult with a qualified network administrator.

4. Properly Terminated Power Supply

Alongside data cabling, the power supply to these switches needs to be equally robust. Armored power cables, laid and terminated with the same precision as data cables, ensure an uninterrupted power supply even in challenging outdoor conditions. This is crucial for maintaining the integrity of the surveillance system, as power issues can lead to data loss or system downtime.

5. Power Backup with Solar power or UPS and Extended Backup Batteries

To ensure continuous operation of your outdoor CCTV system, it is essential to have a reliable power backup solution. A solar panel + battery bank or traditional Uninterruptible Power Supply (UPS) systems with extended backup batteries provide backup power during short-term power outages. These UPS systems automatically switch to battery power, preventing any disruption to the surveillance system’s functionality. The extended backup batteries offer extended runtime, allowing the system to operate smoothly until power is restored.

6. Provision for Diesel Generator

In situations where power outages are expected to be prolonged or frequent, it is advisable to have provisions for a diesel generator. A diesel generator can provide a longer-term power backup solution, ensuring uninterrupted operation of the outdoor CCTV system during extended power blackouts. The generator can be connected to the UPS system, automatically taking over power supply when the batteries are depleted.

By incorporating power backup solutions such as UPS systems with extended backup batteries and provisions for a diesel generator, you can ensure the continuous and reliable operation of your outdoor CCTV video surveillance system, even during extended power outages.

Poles, Fixtures, and Foundations

The physical infrastructure supporting outdoor cameras is as vital as the electronic components. Poles and fixtures must provide the necessary height to maximize the field of view and must be built on stable foundations to withstand wind and weather. At Impulse CCTV, we ensure that our recommended poles are not only tall and stable but also designed for easy maintenance and adjustment of the cameras they support with proper shop drawings and instructions.

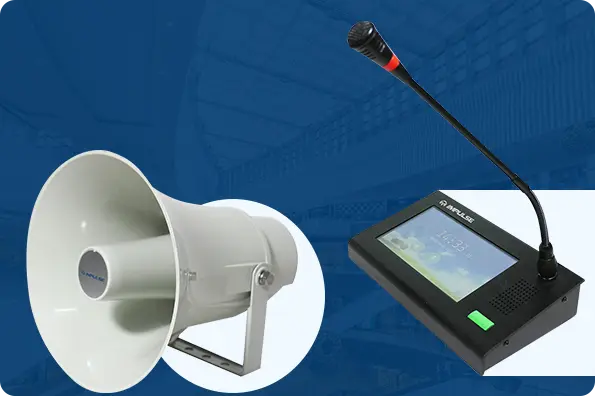

Integration with IP PA Systems

For comprehensive security coverage, an IP Public Address (PA) system is essential. Our Impulse IP PA systems can be seamlessly integrated with your IP telephony system, allowing for automatic or emergency announcements. This integration facilitates real-time communication during critical situations, enhancing the overall security protocol of your facility.

The Impulse IP PA systems mentioned above can be integrated with PTZ (Pan-Tilt-Zoom) cameras to provide comprehensive security coverage and enhanced surveillance capabilities. This integration allows for automatic or emergency announcements to be triggered through the speaker systems when specific events occur, such as the triggering of an alarm or manual intervention by an operator who wants to relay a warning to an intruder.

By combining the PA system with PTZ cameras, security personnel can effectively communicate and respond in real-time to any security incidents or suspicious activities. When an alarm is triggered or an operator identifies a potential threat through the PTZ camera, they can remotely control the camera’s movement to focus on the intruder and simultaneously trigger the PA system to broadcast a warning message. This immediate audio intervention can effectively deter intruders and enhance the overall security protocol of the facility.

The integration of PTZ cameras with PA systems provides a powerful combination of visual surveillance and audio communication, enabling security personnel to take proactive measures and respond promptly to potential threats.

The Control Room: Heart of Surveillance Operations

At the center of this network is the control room or security room. It’s the hub where all information and footage are monitored for review and pre-emptive action. Notifications from various system components converge here, enabling security personnel to respond promptly to any anomalies. A well-designed control room is equipped with multiple monitors, each mapped to specific camera feeds, and integrated with the security network for efficient surveillance management.

By addressing each of these elements – from the cabling and switches to the physical infrastructure and control room integration – Impulse CCTV ensures that your outdoor surveillance system is not just a collection of cameras but a cohesive, fortified security solution ready to withstand and operate in the toughest of environments.

Proper Video Walls

In a control room or security room setting, video walls play a crucial role in displaying and monitoring multiple camera feeds simultaneously. They provide a comprehensive view of the surveillance area and allow operators to quickly identify and respond to any security incidents. The importance of proper video walls cannot be overstated, as they contribute to effective situational awareness and decision-making.

A well-designed video wall system should have high-resolution displays with thin bezels to minimize distractions and provide a seamless viewing experience. The system should also support flexible configuration options, allowing operators to arrange and resize camera feeds as needed. Additionally, video walls should be equipped with advanced features such as video scaling, image enhancement, and video wall management software to optimize the visualization of surveillance footage.

Control Room Modular Furniture

To ensure a comfortable and efficient working environment for control room operators, proper control room modular furniture is essential. This furniture should be designed with ergonomics in mind, providing adjustable workstations and ergonomic chairs to reduce operator fatigue and promote productivity during long monitoring sessions.

Control room modular furniture should also incorporate cable management systems to keep the workspace organized and free from clutter. This helps prevent any accidental disconnections or damage to cables, ensuring uninterrupted surveillance operations.

Power Backup for Storage Systems, Core Networks, Switchers, and Multiplexers

To maintain the integrity and continuous operation of storage systems, core networks, switchers, and multiplexers in a control room environment, a reliable power backup solution is crucial. Power outages can lead to data loss, system downtime, and potential security vulnerabilities. Therefore, it is essential to have backup power systems in place to ensure uninterrupted operation.

Power backup solutions such as Uninterruptible Power Supply (UPS) systems with extended backup batteries can provide temporary power during short-term outages, allowing the control room to continue functioning without interruption. These systems automatically switch to battery power when the main power source is lost, providing a seamless transition and preventing any disruption to surveillance operations.

In situations where power outages are expected to be prolonged or frequent, provisions for additional backup solutions like diesel generators may be necessary. Diesel generators can provide a longer-term power backup solution, ensuring uninterrupted operation even during extended power blackouts.

By implementing proper power backup systems for storage systems, core networks, switchers, and multiplexers, control room operators can have peace of mind knowing that their surveillance operations will continue to function reliably, even in the event of power interruptions.

Installation and Maintenance

Proper installation and maintenance are key to ensuring that your CCTV system functions correctly. While professional installation is recommended, our Impulse EasyInstall Kits are designed for those who prefer a DIY approach, complete with a user-friendly manual.

For maintenance, regular checks and cleanings are essential, especially for outdoor cameras exposed to the elements. Our Impulse Maintenance Service offers scheduled check-ups and cleanings to ensure your system remains in top condition.

Data Storage and Privacy

Data storage and privacy are crucial aspects of any CCTV system. We offer both local storage options, such as with our Impulse Secure Storage DVRs, and cloud-based solutions through Impulse Cloud, which provides encrypted storage for your footage with easy access and backup options.

When implementing CCTV surveillance, respecting privacy laws and regulations is imperative. Ensure that your system complies with local laws, and if necessary, seek legal advice to guarantee compliance.


Choosing the right outdoor CCTV system is a balance of quality, functionality, and cost. At Impulse CCTV, we’re committed to providing our customers with cutting-edge surveillance solutions tailored to their unique needs. With our range of high-quality cameras and systems, you can trust that you’re getting the best in outdoor security technology for 2024.

Investing in a robust outdoor CCTV system is not just about protecting assets; it’s about providing a sense of security that everyone deserves.

Elevate the safety and resilience of your assets and property with Impulse CCTV’s advanced surveillance solutions. Don’t wait for the unexpected to reveal the gaps in your security. Take charge now with our Video Surveillance solutions.

Connect with an Impulse CCTV expert to craft a tailored, impenetrable outdoor CCTV system that stands guard so you can rest easy. From poles to pixels, power to PA systems, we’re your fortress architects.
