Key Security Features of PTZ Cameras

PTZ cameras represent the pinnacle of surveillance technology, offering unmatched versatility and functionality for comprehensive security monitoring. These sophisticated devices combine pan, tilt, and zoom capabilities to deliver dynamic coverage that static cameras simply can’t match. With advanced features like auto-tracking, night vision, and intelligent analytics, PTZ cameras provide security professionals with unprecedented control and monitoring capabilities. Their ability to actively track subjects, zoom in on suspicious activities, and cover vast areas with a single device makes them invaluable in modern security installations. In this technical analysis, we’ll examine the advanced security features that make PTZ cameras essential components in professional security installations.

Understanding PTZ Camera Functionality

PTZ (Pan-Tilt-Zoom) cameras derive their name from their three core movement functions:

• Pan: Horizontal movement (left to right) covering up to 360° rotation
• Tilt: Vertical movement (up and down) typically offering 90° to 180° of coverage
• Zoom: Optical and digital magnification capabilities to focus on distant subjects without losing clarity

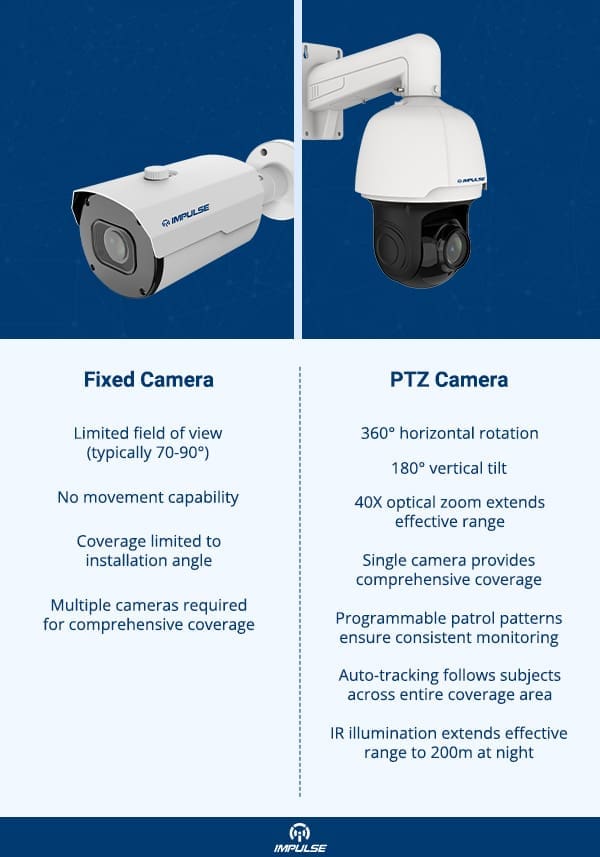

Unlike fixed cameras that maintain a single field of view, PTZ surveillance cameras can actively monitor large areas by pivoting to track movement and zooming to capture critical details. This dynamic functionality dramatically reduces the number of cameras required for comprehensive coverage.

Advanced Features That Define Modern PTZ Surveillance

Optical Zoom Capabilities

The optical zoom function stands as one of the most significant technical advantages of PTZ camera features. Unlike digital zoom, which merely enlarges pixels (often degrading image quality), optical zoom uses lens mechanisms to magnify subjects while maintaining resolution integrity.

High-performance models like the 5MP PTZ IP Network Camera feature an impressive 40X optical zoom coupled with a 4.25mm – 170mm focal length range. This extensive zoom capability allows security personnel to:

• Monitor wide areas at standard magnification
• Instantly zoom to capture critical details like facial features or license plates
• Maintain image clarity at distances exceeding 200 meters
• Document evidence-grade footage usable in investigations

IR Illumination Range

The best PTZ camera features include advanced infrared illumination systems that ensure 24/7 surveillance capabilities regardless of ambient lighting conditions. Modern PTZ cameras incorporate:

• Adaptive IR illumination that adjusts intensity based on zoom level
• Long-range IR capabilities up to 200 meters (as seen in the IMP-CHX-PTZ-200-3016UW)
• Smart IR technology that prevents overexposure of subjects in close proximity
• IR cut filters that deliver true color reproduction during daylight hours

Image Sensor Technology

Professional PTZ cameras utilize advanced CMOS sensors that balance resolution, light sensitivity, and processing efficiency:

• 1/2.7″ CMOS sensors (like those in the 5MP PTZ IP Network Camera offer an optimal balance of sensitivity and resolution
• 5MP resolution capabilities provide detail-rich footage suitable for evidence collection
• Wide Dynamic Range (WDR) technology compensates for challenging lighting conditions
• Advanced signal processing reduces noise in low-light environments

Critical Security Capabilities of Modern PTZ Cameras

Edge Analytics with Auto-Tracking

One of the most significant advantages of modern PTZ camera functionality is edge analytics with auto-tracking capabilities. These intelligent features transform passive monitoring systems into active security solutions:

• Motion detection algorithms identify and flag unusual activity
• Auto-tracking functionality follows subjects of interest throughout the camera’s coverage area
• The system can maintain focus on multiple moving objects simultaneously
• Analytic metadata can be used to trigger recording, notifications, or other security responses

Preset Positions and Tour Functions

Professional PTZ security cameras can be programmed with:

• Multiple preset positions (often 100+) that allow rapid movement to critical monitoring locations
• Customizable tour patterns that automatically cycle through preset positions
• Pattern scanning that repeats user-defined movement sequences
• Line scan functionality that monitors perimeters or boundaries with methodical precision

Environmental Adaptability for Outdoor Use

PTZ cameras for outdoor use require robust environmental protections:

• IP66/67 weatherproof ratings ensure operation in harsh weather conditions
• Operating temperature ranges from -40°C to +60°C (-40°F to 140°F)
• Built-in heaters and blowers maintain optimal internal conditions
• Anti-fog and moisture-resistant optics prevent environmental interference
• Vandal-resistant housings protect critical components

Security Benefits That Drive PTZ Camera Adoption

Comprehensive Coverage with Reduced Infrastructure

One of the primary PTZ surveillance camera benefits is the ability to cover vast areas with fewer devices:

• A single PTZ camera can replace 3-5 fixed cameras in many installations
• Coverage of up to 360° horizontally and 180° vertically from a single mounting point
• Reduced cabling, power requirements, and network infrastructure
• Lower maintenance costs over the system lifecycle
• Simplified video management with fewer video streams to monitor

Enhanced Threat Detection and Response

PTZ camera security features dramatically improve threat detection capabilities through:

• Continuous movement that deters potential intruders
• Ability to rapidly focus on alarm triggers or suspicious activities
• High-resolution zoom capabilities that capture identifying details
• Integration with video management systems for coordinated response
• Auto-tracking that maintains visibility of subjects throughout an incident

Advanced Network Integration

Professional-grade PTZ cameras like the 5MP PTZ IP Network Camera [IMP-CHX-PTZ-200-3016UW] feature:

• ONVIF compliance for seamless third-party integration
• Quad streaming capabilities to serve multiple clients at different resolutions
• Audio and alarm I/O for integration with broader security systems
• Robust cybersecurity protections against unauthorized access
• Efficient bandwidth utilization through H.265/H.264 compression

Storage Optimization and Evidence Management

PTZ cameras incorporate several features that optimize storage requirements while ensuring crucial evidence is preserved:

• SD card support for edge recording during network interruptions
• Smart recording that increases frame rates and resolution during incidents
• Efficient compression technologies that reduce bandwidth and storage requirements
• Pre/post-alarm buffering that captures critical moments before and after events
• Digital watermarking options for evidence authenticity verification

Implementing Professional PTZ Camera Solutions

Selecting the Right PTZ Camera for Your Security Requirements

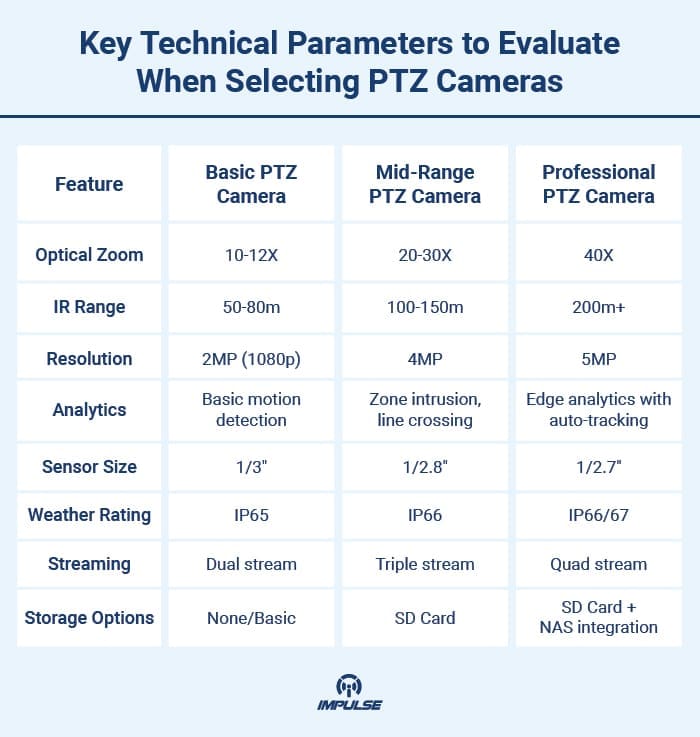

When evaluating PTZ camera features, security professionals should consider:

1. Coverage Requirements: Assess the area dimensions and determine required optical zoom capabilities
2. Lighting Conditions: For low-light environments, prioritize cameras with superior IR range and sensitivity
3. Environmental Factors: For outdoor installations, verify IP ratings and operating temperature ranges
4. Integration Needs: Ensure ONVIF compliance and compatibility with existing VMS platforms
5. Analytics Requirements: Determine which edge analytics functions are essential for your security objectives

The 5MP PTZ IP Network Camera [IMP-CHX-PTZ-200-3016UW]: Technical Excellence in PTZ Surveillance

The 5MP PTZ IP Network Camera [IMP-CHX-PTZ-200-3016UW] represents the pinnacle of security camera with pan tilt zoom functionality, delivering:

• Superior Imaging: 5MP resolution with a 1/2.7″ CMOS sensor for exceptional detail capture
• Exceptional Range: 40X optical zoom with 4.25mm – 170mm focal length range
• 24/7 Monitoring: Up to 200-meter IR illumination range for nighttime surveillance
• Intelligent Operation: Edge analytics with auto-tracking capabilities
• Flexible Integration: Audio/Alarm I/O, quad streaming, and ONVIF compliance
• Reliable Operation: SD card support for uninterrupted recording during network issues
• Professional Features: WDR, auto/manual shutter control, and comprehensive motion detection

This professional-grade PTZ camera delivers the comprehensive functionality required for mission-critical security applications across various industries:

• Critical infrastructure protection
• Perimeter security for industrial facilities
• Campus and institutional surveillance
• Public space monitoring
• Transportation hub security
• Retail and commercial property protection

Implementation Best Practices

To maximize the effectiveness of PTZ camera security features:

1. Strategic Positioning: Install cameras at optimal heights and positions for maximum coverage
2. Proper Configuration: Set preset positions to cover vulnerable areas and critical assets
3. Integration Planning: Ensure seamless communication with VMS and alarm systems
4. Bandwidth Management: Configure resolution and frame rates appropriate to network capacity
5. Regular Maintenance: Implement periodic inspection and cleaning procedures
6. Staff Training: Ensure security personnel understand how to leverage advanced PTZ capabilities

Also read: Exploring Different Camera Types: Dome, Bullet, PTZ, and Box Cameras for Various Surveillance Needs

Conclusion

PTZ cameras represent the most versatile and capable surveillance technology available for professional security applications. Their combination of mobility, optical performance, and intelligent features delivers unmatched monitoring capabilities that static cameras simply cannot provide.

When implementing a comprehensive security strategy, PTZ cameras serve as force multipliers—reducing infrastructure requirements while simultaneously enhancing detection and response capabilities. The advanced features found in professional models like the 5MP PTZ IP Network Camera ensure that security teams can effectively monitor large areas with fewer devices, respond rapidly to potential threats, and capture the detailed evidence necessary for investigations.
